3 Phase Transformer Chart - Kva = volts x amps ÷ 1000. Web three phase transformer full load amps table. It also determines the turns ratio and type of transformer. If service factor is 1.15, increase above amp values by 15%. What affects the sizes and ratings of the transformer? This free online transformer calculator allows you to calculate the full load current in the primary and secondary transformer windings. Listing of standard transformer kva sizes. Three phase transformer core has three sets of windings. In the secondary circuit, a magnetic flux induces an electromotive force (emf), thus stepping up (increase) or stepping down (decrease) voltages without altering the frequency. Full load amps chart for 3 phase circuit.

THREE PHASE ISOLATION TRANSFORMERS Grant Transformers

It also highlights the necessity of matching voltage ratings for proper integration into a. What affects the sizes and ratings of the transformer? Web single phase medium voltage classes. Transformer full load current ratings. The complication in these things is that there are a number of ways of winding them, and a number of ways of interconnecting them.

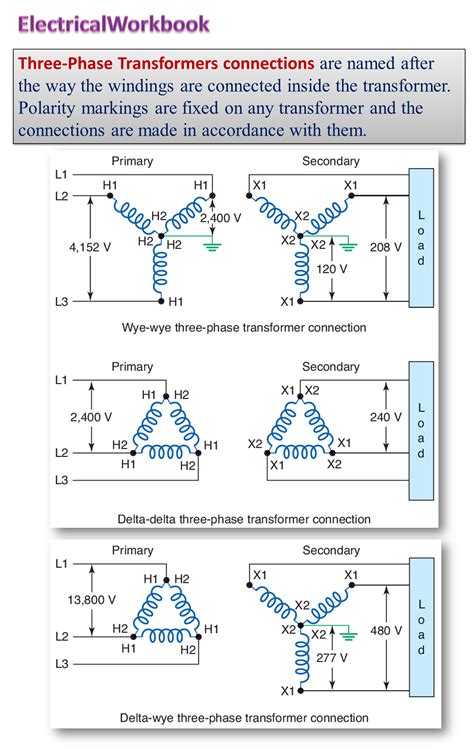

Types of Three Phase Transformer ElectricalWorkbook

Kva = volts x amps ÷ 1000. Kva sizing must often be calculated from primary or secondary winding voltage and amperage information. In the secondary circuit, a magnetic flux induces an electromotive force (emf), thus stepping up (increase) or stepping down (decrease) voltages without altering the frequency. Web transformers are key electrical components useful in determining the power reaching the.

Electrical Engineering World Standard Configuration for ThreePhase

Full load current, use this formula: Kva = volts x amps ÷ 1000. We will have more to say about windings later. Kva sizing must often be calculated from primary or secondary winding voltage and amperage information. 3 phase transformer calculation formulas.

3 Phase Transformer Sizing Chart Best Picture Of Chart

Full load amps equation for 3 phase circuit. By allowing voltage and current levels to be adjusted, transformers solve many practical problems that would otherwise be very difficult to overcome. Web transformers are key electrical components useful in determining the power reaching the load from the supply. In the secondary circuit, a magnetic flux induces an electromotive force (emf), thus.

3 Phase Transformer Sizing Chart

Web a three phase transformer has three sets of primary and secondary windings. Applies to all single and three phase transformers. This free online transformer calculator allows you to calculate the full load current in the primary and secondary transformer windings. Listing of standard transformer kva sizes. Web three phase transformers, full load amperes (flc) kva:

How to Size a Transformer? Calculate the Rating of Transformer

Three phase kva = volts x amps x 1.73 / 1000. *when motor service factor is greater than 1, increase full load amps proportionally. Full load current, use this formula: Web single phase medium voltage classes. Contents [ show] transformer calculation formulas.

Transformer Tiga fase bagan daya listrik Diagram pengkabelan, basis

Full load amps chart for 3 phase circuit. Full load amps equation for 3 phase circuit. Transformers are indispensable components of a power system. It also highlights the necessity of matching voltage ratings for proper integration into a. Kva = volts x amps ÷ 1000.

Three Phase Transformer Calculations sourcinghopde

Three phase kva = volts x amps x 1.73 / 1000. Full load amps chart for 3 phase circuit. If you need a device that converts from different voltages so it can power another device, then a transformer will fulfill that role perfectly. Full load amps equation for 3 phase circuit. The semantic feature vector will go through m transformer.

LOW VOLTAGE TRANSFORMERS SAMDEX

Web what are the standard single phase and three phase kva ratings for transformers by squared/schneider electric? In the secondary circuit, a magnetic flux induces an electromotive force (emf), thus stepping up (increase) or stepping down (decrease) voltages without altering the frequency. Full load current, use this formula: Three phase transformer core has three sets of windings. The semantic feature.

3 Phase Transformer Chart For Sizing

Full load current, use this formula: If service factor is 1.15, increase above amp values by 15%. Transformer full load current ratings. *when motor service factor is greater than 1, increase full load amps proportionally. And john huang, ph.d., p.e.

Web Single Phase Medium Voltage Classes.

Web three phase transformer full load amps table. The semantic feature vector will go through m transformer blocks. Three phase kva = volts x amps x 1.73 / 1000. The formula is as follows:

Web Three Phase Step Down Transformer.

By allowing voltage and current levels to be adjusted, transformers solve many practical problems that would otherwise be very difficult to overcome. If you need a device that converts from different voltages so it can power another device, then a transformer will fulfill that role perfectly. This free online transformer calculator allows you to calculate the full load current in the primary and secondary transformer windings. Contents [ show] transformer calculation formulas.

*When Motor Service Factor Is Greater Than 1, Increase Full Load Amps Proportionally.

Transformers are indispensable components of a power system. It also determines the turns ratio and type of transformer. What affects the sizes and ratings of the transformer? Kva = volts x amps ÷ 1000.

The Complication In These Things Is That There Are A Number Of Ways Of Winding Them, And A Number Of Ways Of Interconnecting Them.

Web to find the full load current in amps for your transformer in a 3 phase circuit, use your transformer's kva rating and voltage and the equation or chart below. Full load current, use this formula: Transformer full load current ratings. Amps = kva ÷ volts x 1000.
