Cmu Size Chart - 2”, 3”, and 4” shapes and sizes 60 county materials corporation solid/soap 150135 concrete 2 in. Concrete masonry units (cmus) are manufactured in a variety of sizes. Variations in dimensions are governed by astm c90 standard specification for loadbearing concrete masonry units. Web present are three classifications of cmu: (9.5 mm) less than nominal dimensions, so that a 4 or 8 in. (102 mm) width, and a wide range of heights. Web the size of the cmu block you choose depends on the requirements of your project. Nominal size (in) actual size (in) 4 x 8 x 16: Also covers shapes, finishes plus astm industrial standards. 8 x 8 x 16:

TYPICAL SIZES AND SHAPES OF CONCRETE MASONRY UNITS NCMA vlr.eng.br

2”, 3”, and 4” shapes and sizes 60 county materials corporation solid/soap 150135 concrete 2 in. For structural walls, 8 x 8 x 16 or 12 x 8 x 16 blocks are generally used, depending on the load requirements. Upon minimum specified dimensions instead of actual dimensions. Reversing any two dimensions will. The thickness of the wall they create.

10' Concrete Masonry Unit Montfort Group Inc.

C90 includes exceptions for split and slump textures. Web cinder block and cmu size chart. 044010 concrete 044210 lightweight (1 hr.) 044012 concrete 044212 lightweight (1. (203 x 203 x 406 mm) concrete masonry unit. For instance, a 6 cmu is nominally 6 deep while a 10 cmu is nominally 10 deep.

Concrete Masonry Units Shaw Brick

Nominal size (in) actual size (in) 4 x 8 x 16: Three terms are used in referring to dimensions: (102 mm) width, and a wide range of heights. Figure 2 illustrates nominal and specified dimensions for a nominal 8 x 8 x 16 in. They combine steel reinforcement bars (rebar) with concrete, offering excellent strength and durability.

Cmu Block Sizes amulette

Standard cmus can also vary in width. Standard concrete blocks typically measure 8. Upon minimum specified dimensions instead of actual dimensions. C90 includes exceptions for split and slump textures. Web standard cmu block wall detail wall height “l” type foundation “t” type foundation “i” type foundation vertical rebar horiz.

Concrete masonry unit calculator ulsdzone

In addition to the most common 8 in. For instance, a 6 cmu is nominally 6 deep while a 10 cmu is nominally 10 deep. The most common shape for splitface concrete blocks is the rectangular shape, which is available in various dimensions. Web standard cmu block wall detail wall height “l” type foundation “t” type foundation “i” type foundation.

Concrete Block (CMU) Sizes, Shapes, and Finishes Archtoolbox

Nominal size (in) actual size (in) 4 x 8 x 16: They may be 100% solid, or may have two or three cores. In addition to the most common 8 in. Web standard cmu block wall detail wall height “l” type foundation “t” type foundation “i” type foundation vertical rebar horiz. 2”, 3”, and 4” shapes and sizes 60 county.

8 Cmu Dimensions

Three terms are used in referring to dimensions: (102 mm) width, and a wide range of heights. Upon minimum specified dimensions instead of actual dimensions. Web concrete columns are vertical structural elements made from reinforced concrete, designed to support and transfer loads to a building's foundation. Web superlite block is proud to provide owners, architects, engineers and contractors with high.

Cmu Block Sizes amulette

7 55/ 8 15 /5/ 8 15/8 7 / 15 2 5 /8 4 in. Web actual dimensions are the measured dimensions of the unit. Web concrete columns are vertical structural elements made from reinforced concrete, designed to support and transfer loads to a building's foundation. They combine steel reinforcement bars (rebar) with concrete, offering excellent strength and durability. In.

Cmu Block Sizes amulette

They combine steel reinforcement bars (rebar) with concrete, offering excellent strength and durability. 3dm (ft) 3dm (m) obj. Upon minimum specified dimensions instead of actual dimensions. 150150 concrete 150152 lightweight solid 4 in. Web specified dimensions of concrete masonry units are typically 3/8 in.

8' Concrete Masonry Unit Montfort Group

Web regular cmu blocks come in a variety of sizes with nominal depths of 4”, 6”, 8”, 10”, 12”, nominal height of 8”, and nominal width of 16”. Web present are three classifications of cmu: Width, cinder blocks can also have 4 in., 6 in., 10 in. Standard concrete blocks typically measure 8. Variations in dimensions are governed by astm.

(102 Mm) Width, And A Wide Range Of Heights.

Three terms are used in referring to dimensions: They may be 100% solid, or may have two or three cores. Web splitface concrete blocks, also known as concrete masonry units (cmus), come in a variety of shapes and sizes, making them a versatile building material widely used in construction. Nominal size (in) actual size (in) 4 x 8 x 16:

Dwg (Ft) Dwg (M) Svg.

Web our standard cmu is available in different mix designs to conform to the astm specifications for concrete masonry units. Astm standards allow the actual dimensions a permissible variation from the specified dimension. 7 55/ 8 15 /5/ 8 15/8 7 / 15 2 5 /8 4 in. In addition to the most common 8 in.

Web Standard Cmu Shape Chart Regulars All Available In Sash & Pier Configurations Solids Oversized Sills Insulated Legend B Bottomground Dbn Doublebullnose E Endground F Faceground H Halflength Hh Halfheight Ko/Bb Knockoutbondbeam Sb/Bb Solidbottombondbeam Sbn Singlebullnose Sn Sheepnose S Scored T Topground.

Web cinder block and cmu size chart. 044010 concrete 044210 lightweight (1 hr.) 044012 concrete 044212 lightweight (1. C90 includes exceptions for split and slump textures. 3dm (ft) 3dm (m) obj.

For Instance, A 6 Cmu Is Nominally 6 Deep While A 10 Cmu Is Nominally 10 Deep.

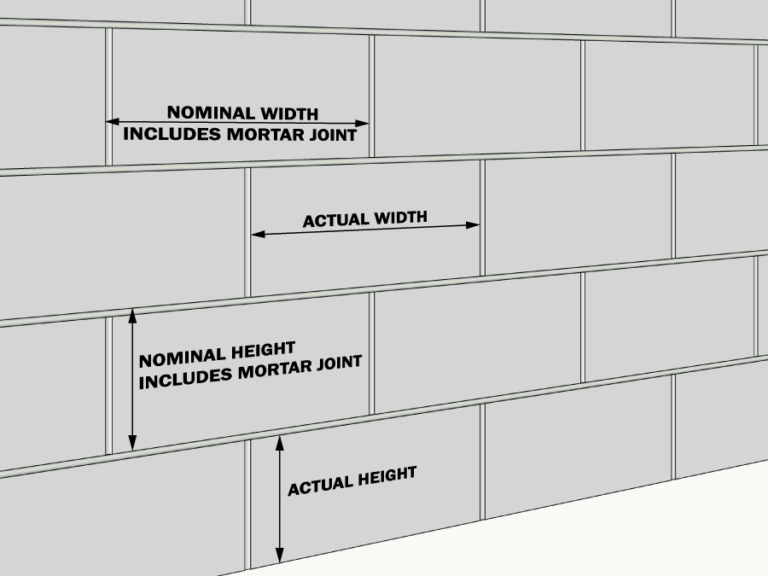

12 x 8 x 16: Web actual dimensions are the measured dimensions of the unit. 10 x 8 x 16: The most common shape for splitface concrete blocks is the rectangular shape, which is available in various dimensions.
