How Many Wires In Conduit Chart - You need to choose your fill table. Across from the wire gauge, you’ll find the maximum number of wires that can be placed inside your conduit diameter. Read down the first column on the fill table to find the wire gauge. To determing the conduit size needed, multiply the quantities of each size of cable by the appropriate factor, compare the total with the conduit figures shown. Web this guideline is based on national electrical code (usa) recommendations for conduit fill of runs with no more than two 90° bends. Use it to determine how many wires your conduit tubing can safely contain. 6 awg or smaller conductors national electrical code chapter 9 tables for calculation. For assistance in calculating conduit fill, refer to the “resources” area of our site for the technical guides, “how to calculate conduit fill with different size cables.” use only approved lubricants. • what size conduit do i need? Web this conduit fill chart is used to determine how many wires can be safely put into conduit tubing or pipe at a 40% fill, taking into account cable conduit size vs.

how to figure out conduit size Wiring Work

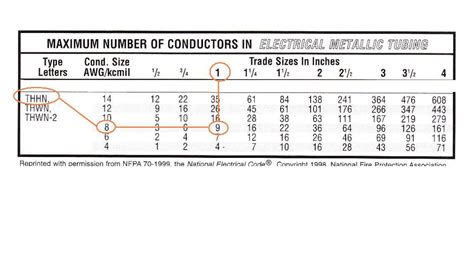

“thru” hub refers to wiring that is pulled through one end hub and out the opposite end hub. Web 14 4 13 22 33 52 76 134 202 291 396 518 12 3 9 16 24 38 56 98 147 212 289 378 10 1 6 10 15 24 35 62 93 134 182 238 8 1 3 6 9.

19 Unique How Many Wires In Conduit Chart

To determing the conduit size needed, multiply the quantities of each size of cable by the appropriate factor, compare the total with the conduit figures shown. “side” hub refers to wiring that is pulled through one end hub and out a side hub. The horizontal numbers at the top of the graph refer to the size and type of conduit..

Electrical Conduit Fittings Chart

Web this conduit fill table can help you make wiring decisions. “thru” hub refers to wiring that is pulled through one end hub and out the opposite end hub. Web nec conduit fill maximum number of conductors in conduit or tubing: “side” hub refers to wiring that is pulled through one end hub and out a side hub. Simply enter.

conduitfillchart Electrician Services

For assistance in calculating conduit fill, refer to the “resources” area of our site for the technical guides, “how to calculate conduit fill with different size cables.” use only approved lubricants. Type of wire conductor size conduit size (inches) awg/kcmil 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 3 1/2 4 5 6 tw, xhhw 14 9.

How Many Wires In Conduit

This conduit size calculator will help you answer two questions: Across from the wire gauge, you’ll find the maximum number of wires that can be placed inside your conduit diameter. Web use the below charts to determine the number of wires that can be put into conduit tubing, while maintaining nec standards. This page includes two conduit fill tables: You.

Wires In Conduit Chart

This conduit size calculator will help you answer two questions: • how many cables will fit in my conduit? Web this pvc conduit fill table is used to determine how many thwn or thhn wires can be safely put into pvc conduit tubing. Web our nec conduit fill chart calculates thwn and thhn wire fill for emt, imt, rigid metal,.

Conduit Fill Chart for and Coaxial Cable

6 awg or smaller conductors national electrical code chapter 9 tables for calculation. Each row going across is a diferent size and type of conduit, either emt, imc, or galvanized pipe (rigid metal conduit, rmc). Web our nec conduit fill chart calculates thwn and thhn wire fill for emt, imt, rigid metal, or flexible metal conduit pipe using conduit trade.

Conduit Size Chart For Wire

Each column (going up and down) is a diferent gauge of wire. Each column (going up and down) is a different gauge of wire. • how many cables will fit in my conduit? Each row going across is a diferent size and type of conduit, either emt, imc, or galvanized pipe (rigid metal conduit, rmc). Web the app will calculate.

Wires In Conduit Chart

Web our nec conduit fill chart calculates thwn and thhn wire fill for emt, imt, rigid metal, or flexible metal conduit pipe using conduit trade size and awg or mcm wire size. Web this guideline is based on national electrical code (usa) recommendations for conduit fill of runs with no more than two 90° bends. Web above information referenced from.

Wires In Conduit Chart

Web the app will calculate the conduit fill percentages and jam probability for multiple conductors per nec® guidelines. To determing the conduit size needed, multiply the quantities of each size of cable by the appropriate factor, compare the total with the conduit figures shown. To find out how many cables you can run in a given conduit size, enter your.

• What Size Conduit Do I Need?

Each row going across is a different size of pvc conduit (schedule 40 or 80). Web conduit wire fill trade size type wire size (thwn, thhn) conductor size awg / kcmil 14 12 10 8 6 4 3 2 1 1/0 2/0 3/0 4/0 250 300 350 400 500 600 700 750 Use it to determine how many wires your conduit tubing can safely contain. Number of bends in your conduit.

Web Use The Below Charts To Determine The Number Of Wires That Can Be Put Into Conduit Tubing, While Maintaining Nec Standards.

Web the results are the numbers of wires of that gauge, that can be run through that size, of that kind of conduit such as emt, imc, and galvanized pipe. For assistance in calculating conduit fill, refer to the “resources” area of our site for the technical guides, “how to calculate conduit fill with different size cables.” use only approved lubricants. Web this conduit fill chart is used to determine how many wires can be safely put into conduit tubing or pipe at a 40% fill, taking into account cable conduit size vs. Web our nec conduit fill chart calculates thwn and thhn wire fill for emt, imt, rigid metal, or flexible metal conduit pipe using conduit trade size and awg or mcm wire size.

You Need To Choose Your Fill Table.

Above information referenced from tables c1, c4, and c8 in the national electric code of 2008. To determing the conduit size needed, multiply the quantities of each size of cable by the appropriate factor, compare the total with the conduit figures shown. To find out how many cables you can run in a given conduit size, enter your belden cable part number, or enter the diameter of your cable. We have made this determination easy, with a convenient chart (maximum wire fill comparison | appletontm and.

Web Conduit & Trunking Capacity Chart.

6 awg or smaller conductors national electrical code chapter 9 tables for calculation. Web this guideline is based on national electrical code (usa) recommendations for conduit fill of runs with no more than two 90° bends. Each column (going up and down) is a diferent gauge of wire. Simply enter the conduit type and size, then specify your conductors.
