Pipe Flow Rate Chart - Send water sample to marlo, inc. Web need to calculate the flow rate of water through a specific pipe diameter? Web the following chart gives standard pipe schedule or pipes sizes as given by ansi / asme b36.10m and api 5l. We regularly get asked about the water flow capacity of different pipe sizes, and which is the best roof drain for a specific pipe size. Web flow rate of fluids in pipes. Web determining a flow rate calculation simply means determining how fast the water moves through a pipe and how much space it occupies inside the pipe as it moves from one point to another. Our guide provides handy tables of approximate water flow rates based on pipe size, helping you estimate capacity quickly and easily. To calculate internal pipe diameter, you should only enter flow rate and velocity in corresponding fields in the calculator and click calculate button to get results. The surface character of the bore, the number, and shape of bends incorporated in the run of the hose also influence the flow rate. Web water flow rates for pipe sizes over a range of diameters with the hazen williams formula.

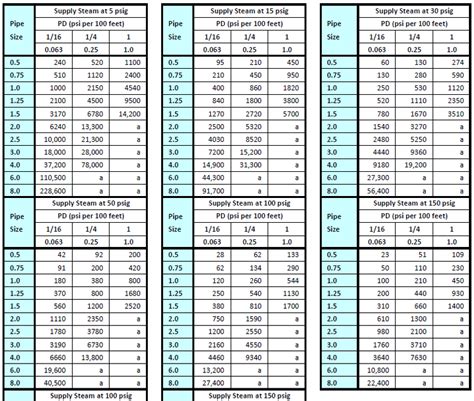

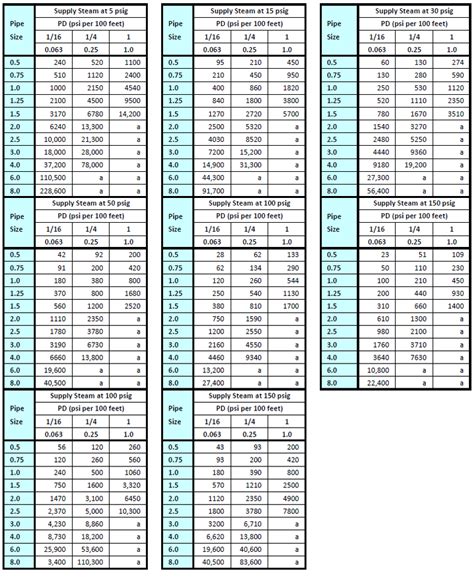

21 Best Pipe Flow Chart Gpm

Inner diameter [ mm] 4. Use servicetitan’s flow rate calculator to save time, reduce waste, and get an accurate measurement every time. No single recommendation will be correct for all possible circumstances, but the table below can be used as a general guidance for water flow capacity in steel pipes schedule 40. Web the following chart gives standard pipe schedule.

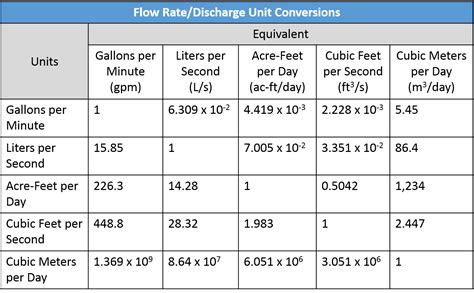

Water Flow Rate Chart

Equations displayed for easy reference. Type of fixtures & no. $\lambda $ is the pipe friction. Q = water flow rate in gal/min (gpm) d = pipe diameter in ft. Find out how much water volume is in your pipe by simply inputting the pipe diameter and length.

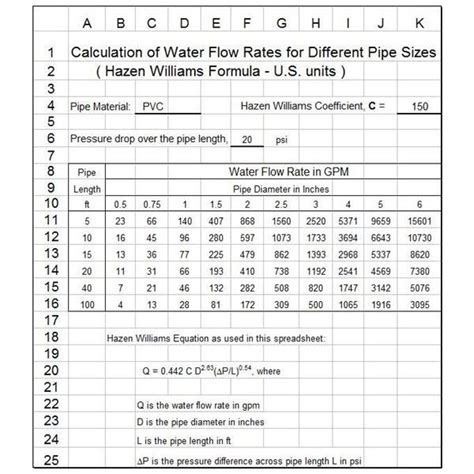

Water Flow Rates for Pipe Sizes with Excel Formulas, Using the Hazen

Q = 193.7 c d2.63 s0.54, where: Of course, the higher the thickness the higher the weight, and this very important consideration can also be attained by data tables provided by the pipe manufacturer. Web pipe diameter calculation for known flow rate and velocity, in closed round pipe, applicable for liquids and gases Web in the chart to the left.

Finding the flow rate through an openend pipe

Q = water flow rate in gal/min (gpm) d = pipe diameter in ft. Web online calculator to quickly determine water flow rate through piping. To calculate internal pipe diameter, you should only enter flow rate and velocity in corresponding fields in the calculator and click calculate button to get results. Pipe length [ m] 1. (well there are really.

Drain Pipe Flow Rate Chart

Web the following chart gives standard pipe schedule or pipes sizes as given by ansi / asme b36.10m and api 5l. Q = water flow rate in gal/min (gpm) d = pipe diameter in ft. Analysis should at least test for the following. $\lambda $ is the pipe friction. This empirical equation, exclusively applicable to water, allows calculating the velocity.

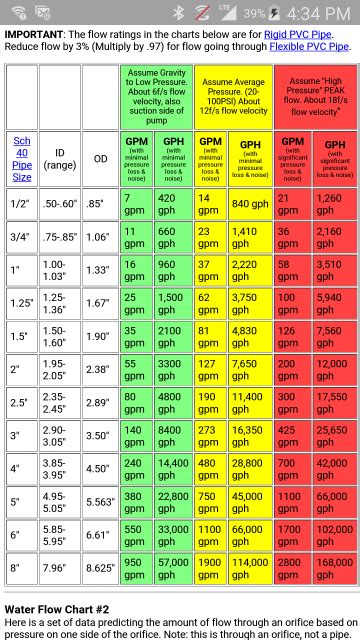

Pvc Pipe Diameter Flow Rate Chart

With this diameter, velocity and flow rate calculator, you can determine the exact flow rate or velocity at which water will flow through any given pipe. Find out how much water volume is in your pipe by simply inputting the pipe diameter and length. We regularly get asked about the water flow capacity of different pipe sizes, and which is.

Gpm Water Flow Through Pipe Chart

Pipe length [ m] 1. Check with local water utility department for their water analysis records. With this diameter, velocity and flow rate calculator, you can determine the exact flow rate or velocity at which water will flow through any given pipe. Web with our flow calculator you determine the flow velocity, the flow rate and the pressure loss in.

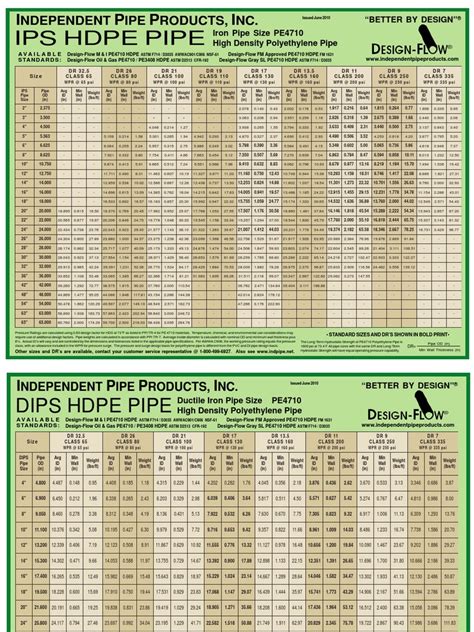

HDPE Pipe Flow Chart

Unfortunately, recommendations aren't that straightforward because you also need to account for water pressure, material friction and more. Send water sample to marlo, inc. Web in order to calculate the average velocity or the flow rate, you need to determine, whether the flow is laminar or turbulent, and also calculate the friction coefficient. Web determining a flow rate calculation simply.

Drainage Pipe Flow Rate Chart

Equations displayed for easy reference. Web fluide design inc., 5764 monkland avenue, suite 311, montreal, quebec, canada h4a 1e9 tel: Q = water flow rate in gal/min (gpm) d = pipe diameter in ft. Web easily calculate the volumetric flow rate of a pipe (a.k.a. Discharge rate) given its dimensions and either a pressure difference between its ends or the.

Drainage Pipe Flow Rate Chart

Flow velocity [ m/s] 0.1. (well there are really six, but each colum is shown in gallons per minute, and then again as gallons per hour.) Unfortunately, recommendations aren't that straightforward because you also need to account for water pressure, material friction and more. Web easily calculate the volumetric flow rate of a pipe (a.k.a. To calculate internal pipe diameter,.

Q = Water Flow Rate In Gal/Min (Gpm) D = Pipe Diameter In Ft.

Obtain a properly taken water analysis. Web how much water can flow through a pipe (gpm/gph)? Web when it comes to water flow in pipes, determining the capacity depends on the pipe size and water pressure. Check with local water utility department for their water analysis records.

$$\Delta P = \Lambda \Cdot \Frac{L \Cdot\Rho}{2 \Cdot D}\Bar{U}^2$$ Where:

Web easily calculate the volumetric flow rate of a pipe (a.k.a. Analysis should at least test for the following. Unfortunately, recommendations aren't that straightforward because you also need to account for water pressure, material friction and more. Use servicetitan’s flow rate calculator to save time, reduce waste, and get an accurate measurement every time.

Web Determining A Flow Rate Calculation Simply Means Determining How Fast The Water Moves Through A Pipe And How Much Space It Occupies Inside The Pipe As It Moves From One Point To Another.

The quantity of fluid that will be discharged through a hose depends on the pressure applied at the feed end, the hose length and bore diameter. Inner diameter [ mm] 4. Web the following chart gives standard pipe schedule or pipes sizes as given by ansi / asme b36.10m and api 5l. No single recommendation will be correct for all possible circumstances, but the table below can be used as a general guidance for water flow capacity in steel pipes schedule 40.

Web Fluide Design Inc., 5764 Monkland Avenue, Suite 311, Montreal, Quebec, Canada H4A 1E9 Tel:

For flow of water under pressure in a circular pipe, the hazen williams formula shown above can be rewritten into the following convenient form: Analyze water with portable test kit. This empirical equation, exclusively applicable to water, allows calculating the velocity or the head loss of a gravity flow. With this diameter, velocity and flow rate calculator, you can determine the exact flow rate or velocity at which water will flow through any given pipe.
