Punch And Die Clearance Chart - Vol.6 for clearance of the cutting die. Optimizing the die clearance is one of the most important steps to punching success. Regardless of sheet thickness, the recommended penetration of the punch into a slug free ® die is 0.118(3.00). Web the proper and safe clearance between the punch and the die will be different based on the size of hole you are punching, the material thickness, and the material hardness. The formula for calculating the clearance z/2 on each side is: 1350 o.1575 o.1800 max 0.0072 material thickness min 0.0043 o. Web p = k × l × t × г. Web there is no clearance between the sizes you have selected and this will result in the punch and die colliding. Punch & workpiece material type; The relationship of the larger die.

How does a punch and die actually work?

Also we will introduce one pitch thread form as a forming tool. Web there are two methods for determining the punch and die clearance, by experience and by formula. Regardless of sheet thickness, the recommended penetration of the punch into a slug free ® die is 0.118(3.00). Web there is no clearance between the sizes you have selected and this.

Contact Cleveland Punch & Die

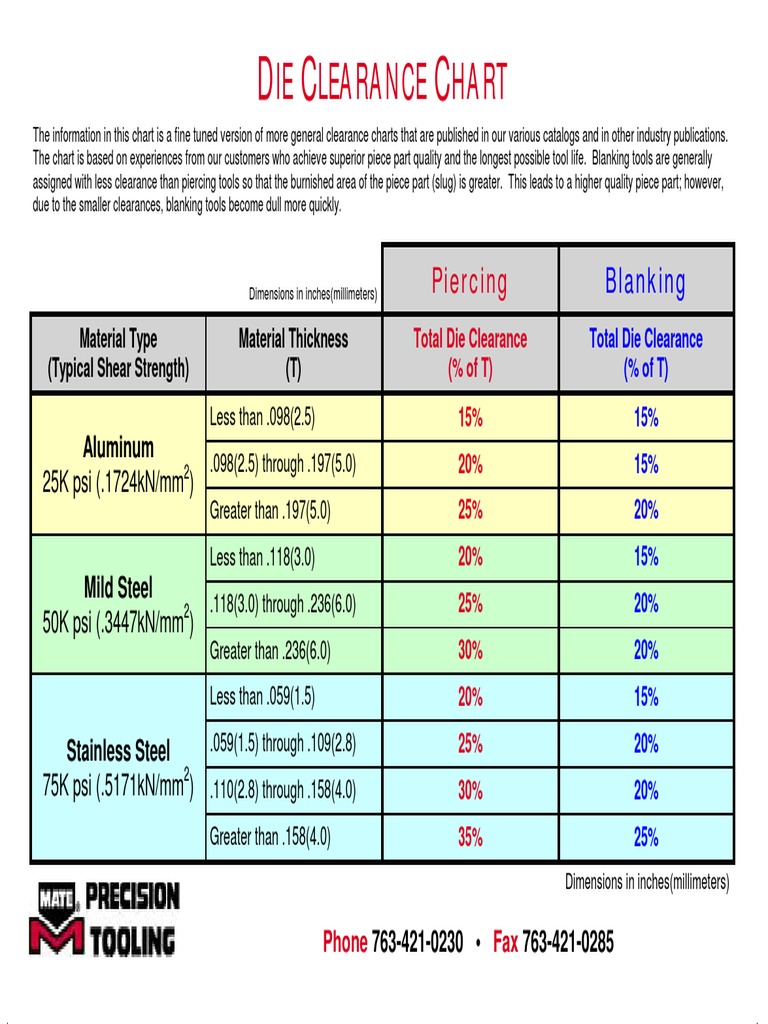

( ∆ = clearance per side.) the clearance itself depends on the stock thickness, the tensile strength, and the type of material—all driven by the requirements of the specific job. Punch size 1/8 1/4 3/8 1/2 5/8 3/4 7/8 1 3/1613/64. Refer to the chart below to determine the correct clearance per material thickness. This time, we summarized the selection.

Punch And Die Clearance

Web die clearance selection chart. The relationship of the larger die. It is commonly referred to as clearance per side, and is expressed as a percentage of stock thickness. Punch & workpiece material thickness; Web there is no clearance between the sizes you have selected and this will result in the punch and die colliding.

Punch And Die Clearance Chart

Mild steel with a thickness of 0.079 (2mm) “best” die clearance = 15% of.079 (2mm) =.012 (0.30mm) % material thickness. Z 2 = t m a x + k t. Web clearance guide for punching mild steel. Web for other gauges and material thicknesses and minimum burr, specify the type and thickness of material being punched and the exact clearance.

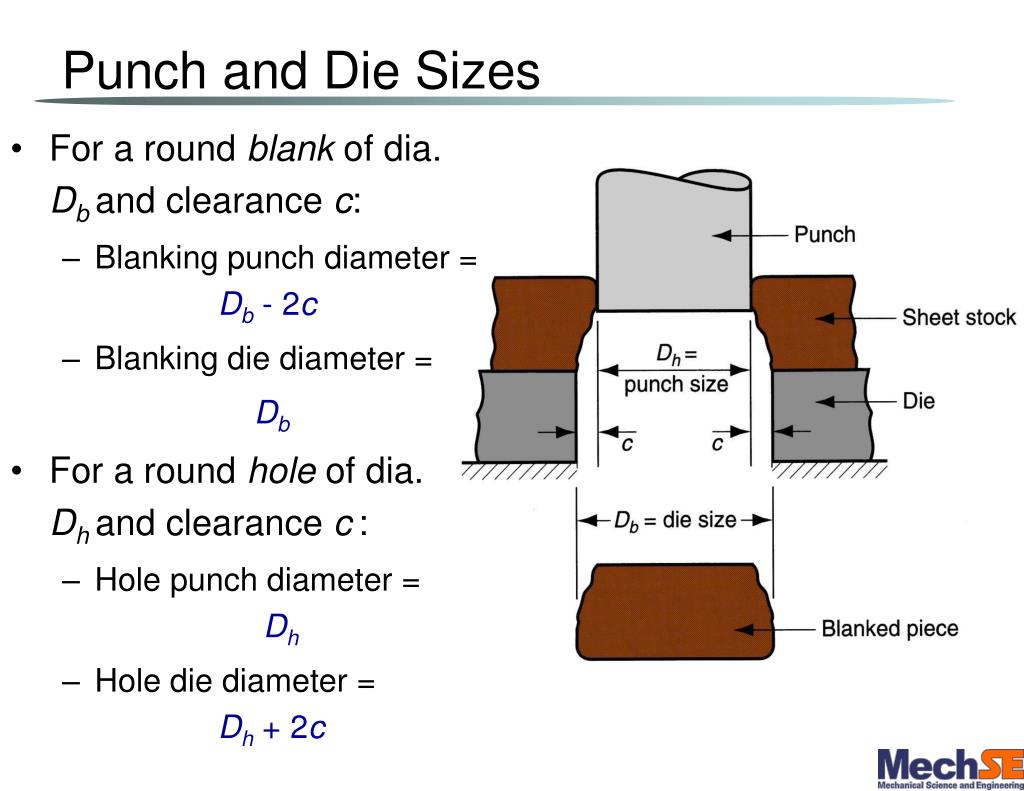

PPT ME 350 Lecture 18 Chapter 20 PowerPoint Presentation, free

Web the clearance in punching refers to the distance between the gap of the punch and die edges, denoted by the symbol c (see figure 1). Total die clearance = die clearance on both sides of punch total die clearance = die clearance 1 + die. Web die clearance is equal to the space between punch and die when the.

clearance table for metric metal punch sizes. Cleveland

Punched hole size & geometry and tolerancing; Web what is die clearance? Web for other gauges and material thicknesses and minimum burr, specify the type and thickness of material being punched and the exact clearance (see chart 5 ). This time, we summarized the selection criteria of the clearance. Web therefore, in the design of deep drawing dies, the clearance.

and Fig. 10 illustrate the relation between the punchdie clearance and

Use the online calculator to find the die clearance for any material thickness. Web factors that affect die clearance. Web clearance table for standard inch sizes 0.0065 0.0075 0.0086 0.0097 0.0108 0.0121 0.0134 0.0161 0.0188 0.0215 0.0225 0.0242 0.0269 0.0296 0.0323 0.0338 0.0350 0.0377 0.0404 0.0430 0.0450 0.0563 0.0675 0.0788 0.0900 o. Web what is die clearance? Wilson tool recommends.

Die Clearance Chart and Metal Gages Card Crafts Building Materials

Die clearance is equal to the space between punch and pie when the punch enters the die opening. Web there is no clearance between the sizes you have selected and this will result in the punch and die colliding. Web p = k × l × t × г. Regardless of sheet thickness, the recommended penetration of the punch into.

Punch Press Die Clearance Chart

( ∆ = clearance per side.) the clearance itself depends on the stock thickness, the tensile strength, and the type of material—all driven by the requirements of the specific job. The minimum reasonable clearance value should be used when designing and manufacturing a new stamping die, taking into account the deviation in. .079 (2mm).012 = (0.30mm) note: Web clearance table.

Cleveland Punch and Die Company Blog Page Remember to Check Your

For many years, 5% per side die clearance was used. Total die clearance = die clearance on both sides of punch total die clearance = die clearance 1 + die. Web die clearance is the distance between the punch cutting edge and the die button cutting edge. Optimizing the die clearance is the single most important contribution to punching success..

Enter The Punch Size And Material Thickness And Get The Clearance And Die Size Instantly.

Punched hole size & geometry and tolerancing; Also we will introduce one pitch thread form as a forming tool. Web die clearance selection chart. Web therefore, in the design of deep drawing dies, the clearance on each side between the punch and die is generally greater than the material thickness to reduce friction.

Web Find Out What Size Die You Need For Your Punching Application With This Online Tool.

The relationship of the larger die. Die clearance is equal to the space between punch and pie when the punch enters the die opening. Web die clearance is equal to the space between punch and die when the punch enters the die opening. Vol.6 for clearance of the cutting die.

.079 (2Mm).012 = (0.30Mm) Note:

Punch size 1/8 1/4 3/8 1/2 5/8 3/4 7/8 1 3/1613/64. Web what is die clearance? Optimizing the die clearance is the single most important contribution to punching success. Web there is no clearance between the sizes you have selected and this will result in the punch and die colliding.

Regardless Of Material Thickness, The Recommended Penetration Of The Punch Into A Mate Slugfree® Die Is 0.118(3.00)

Web the proper and safe clearance between the punch and the die will be different based on the size of hole you are punching, the material thickness, and the material hardness. Using a clearance that is too large leads to large burrs and poor part quality. Web die clearance is the distance between the punch cutting edge and the die button cutting edge. Web the dayton engineered clearance, considered by many as the “new” standard, offers a wider range of clearances, reaching as high as 28% ∆.
