Toyota Differential Identification Chart - Since most differentials have a unique cover bolt pattern i.e. Find exploded view diagrams, differential experts, and technical support for your project. These codes are applicable to all toyota models and years. Compare the features and specifications of different gear styles across various models and years. Web as an example a rn25 hilux manufactured during the 2/74 has the 'axle' code g142. For instance, fj60 axles have the hump slightly further out than a 40’s. Web the following is a table of toyota differential codes. Web toyota sometimes mistakenly coded trucks with 4 pinion diffs with a 2 code. The first digit is a letter that represents the ring gear diameter. The code is comprised of four digits.

Toyota 8" Differential Parts West Coast Differentials

To verify if yours is a 2 or 4 pinion diff, count the number of fins on each side of the diff. This is known as the 4cyl diff. this diff is by far the most common diff in older toyotas. Web here is a table of ring and pinion sizes for various gear ratios in the toyota 8 differential:.

Share 105+ images toyota differential identification chart In

The code is comprised of four digits. Web the following is a table of toyota differential codes. Find out the common gearing o… Web luckily, there are visual cues that can help identify your particular diff or axle. You will find this code on the vin plate in your car, typically on the firewall.

Toyota Differential Identification Chart

Sierra gear & axle offers gear and axle parts for various toyota vehicles and other makes. See a chart of common gear codes and recommendations for different tire sizes and driving styles. Find out the common gearing o… I thought i had a 8” rear diff but according to my door jam sticker it’s saying i have a 7.5” 2.

Toyota differential identification chart

4cyl has 3 ribs on each side. This is known as the 4cyl diff. this diff is by far the most common diff in older toyotas. These codes are applicable to all toyota models and years. Web luckily, there are visual cues that can help identify your particular diff or axle. Web 9 rows learn how to identify and choose.

Toyota Differential Identification Chart

A 2 pinion will have 3 fins on each side. Find exploded view diagrams, differential experts, and technical support for your project. Web learn how to decode the vin plate to find your toyota pickup's gear ratio and diff size, and how to choose the best gears for your application. Use the images and information listed below to help identify.

Toyota 8" Differential Parts West Coast Differentials

Web learn how to identify your differential using tags, stampings, bom numbers, rpo codes, or visual clues. Web 9 rows learn how to identify and choose the right ring and pinion sets for your toyota differential. You will find this code on the vin plate in your car, typically on the firewall. Sierra gear & axle offers gear and axle.

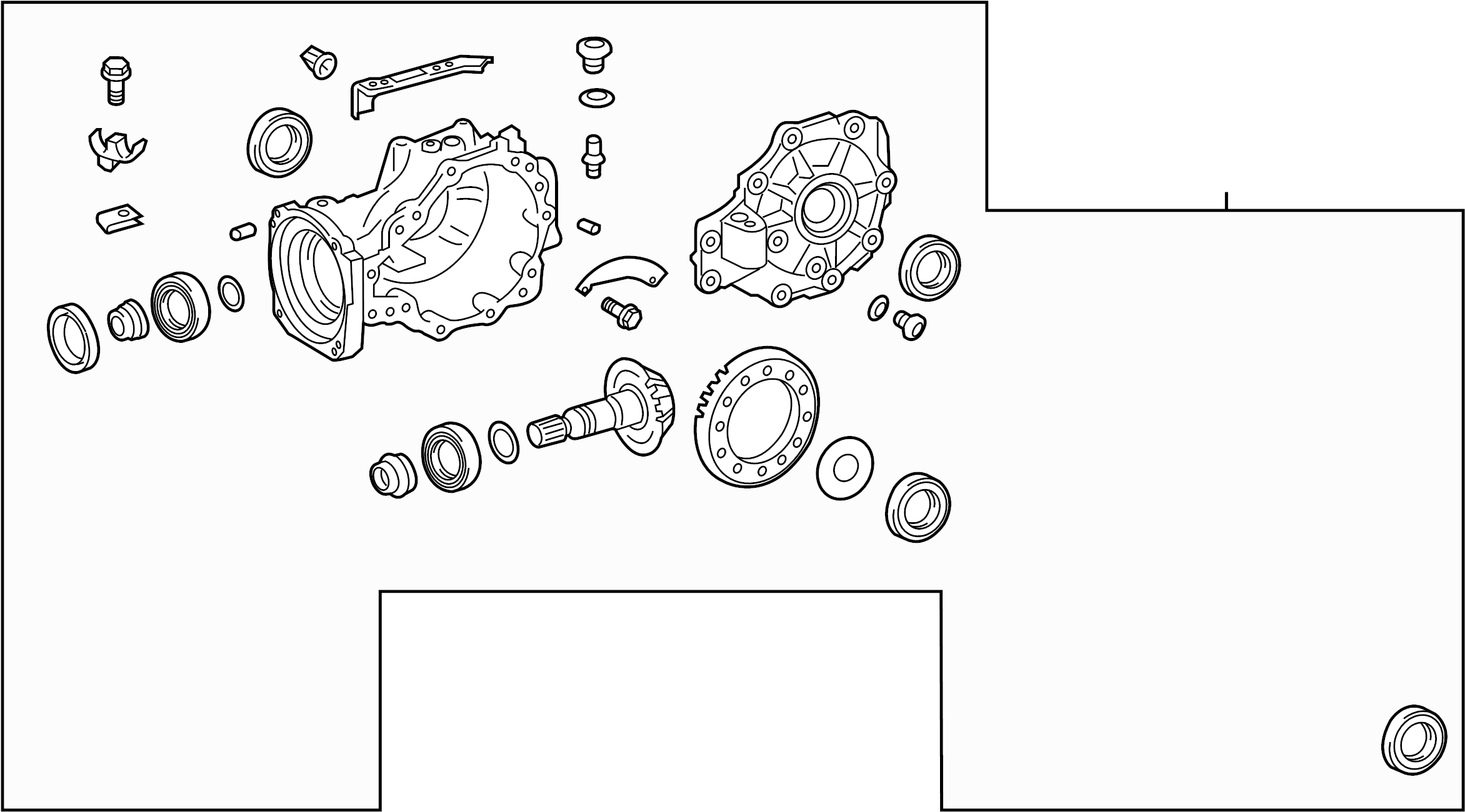

4111048104 TOYOTA Differential Toyota Parts Overstock, Lakeland FL

Web toyota sometimes mistakenly coded trucks with 4 pinion diffs with a 2 code. The next two digits, 14, nominate the ratio, which according the ratio table below is. 4cyl has 3 ribs on each side. Web a01a on a 2002 4runner will be a completely different differential than a01a on a tacoma or even on a 2003 4runner! Find.

Toyota axle chart

Without an id tag, differentials are identified by the number of cover bolts, the distinctive shape of the cover, the number of ring gear bolts, and ring gear diameter. This is known as the 4cyl diff. this diff is by far the most common diff in older toyotas. Use the images and information listed below to help identify which differential.

Toyota Highlander Service Manual Differential (4WD) Differential

(typical axle ratios for manual transmission equipped trucks, 28 stock tires) table: These codes are applicable to all toyota models and years. See a chart of common gear codes and recommendations for different tire sizes and driving styles. Web i blew up a spider gear in my rear diff and i’m looking at different options for repairs right now. The.

Toyota8.75ReverseIFSDifferentialParts West Coast Differentials

Web toyota sometimes mistakenly coded trucks with 4 pinion diffs with a 2 code. A = 7.5 ring gear. B = 8 ring gear. Without an id tag, differentials are identified by the number of cover bolts, the distinctive shape of the cover, the number of ring gear bolts, and ring gear diameter. The appearance will be similar to this:

The Appearance Will Be Similar To This:

A = 7.5 ring gear. Since most differentials have a unique cover bolt pattern i.e. They can also be identified by whether the center section is an integral or dropout design. Web luckily, there are visual cues that can help identify your particular diff or axle.

Web In The Absence Of An Id Tag, Axle / Differential Types Can Be Identified Using The Shape Of The Cover, The Number Of Cover Bolts, The Number Of Ring Gear Bolts, And The Ring Gear Diameter.

Find exploded view diagrams, differential experts, and technical support for your project. The letter g signifies it has a g series differential and therefore an 8 diametre crownwheel. The next two digits, 14, nominate the ratio, which according the ratio table below is. It comes without spacing and excludes characters that could potentially be confused with numbers like q/q, i/i, and o/o.

The Differential Hump Might Be In The Way.

Web the following is a table of toyota differential codes. Learn how to identify the type, size, and gear ratio of your toyota differential by decoding the vin and information plate codes. Web i blew up a spider gear in my rear diff and i’m looking at different options for repairs right now. As the 2016 tacoma is still the same frames/type as the 2005 to 2016, the axle codes go on.

Web A01A On A 2002 4Runner Will Be A Completely Different Differential Than A01A On A Tacoma Or Even On A 2003 4Runner!

Use the images and information listed below to help identify which differential your vehicle has before ordering parts. These codes are applicable to all toyota models and years. Find out the common gearing o… This is known as the 4cyl diff. this diff is by far the most common diff in older toyotas.
