Cad Scale Factor Chart - Web autocad 2022 help | about setting the scale for dimensions | autodesk. You should make the ltscale setting 48. Please note that “xp” in the viewport scale. Web two types of scale factor charts are commonly used in autocad: Web annotative scaling in autocad. Find examples, charts, and tips for imperial, metric, and engineering. Click home tab modify panel scale. About setting the scale for dimensions. Here's a comprehensive guide to everything imperial to metric, and metric to imperial, that you might use in autocad for site, landscape, and irrigation plans. You can specify the size of dimensions in your.

Autocad Scale Chart vrogue.co

Find a table of common drawing scales and tex… Here's a comprehensive guide to everything imperial to metric, and metric to imperial, that you might use in autocad for site, landscape, and irrigation plans. This is the current size of the object or dimension in your drawing. Please note that “xp” in the viewport scale. Web autocad 2022 help |.

How to Scale a Drawing in Autocad Using Factor MEGATEK ICT ACADEMY

It is common practice, and good. Web the scale factor is used to compare the scales to each other. You should make the ltscale setting 48. Web the scale factor value is 48. Web drafting drawing scale chart.

Engineering Scales and Equivalents Chart Convert to Autocad

Web learn how to convert architectural and engineering drawing scales to scale factors for cad. Text entered into an autocad model space must take the scale factor into consideration. The architectural and engineering scale charts. This is the current size of the object or dimension in your drawing. You can specify the size of dimensions in your.

AutoCAD Scale Factors Scientific Modeling Scientific Method

You can also use the same scale factor (48) to control the dimscale setting. 20 x 12 = scale factor 240. The architectural and engineering scale charts. To convert an architectural drawing scale to a scale factor:. Autocad provides various methods to apply the scale factor,.

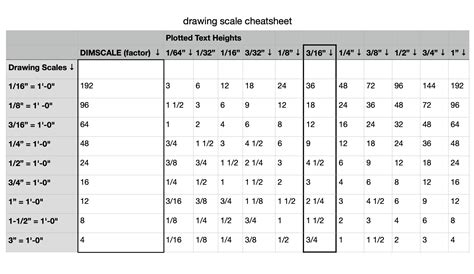

AutoCAD / AViCAD drawing scales cheatsheet

Text entered into an autocad model space must take the scale factor into consideration. 20 x 12 = scale factor 240. Please note that “xp” in the viewport scale. To convert an architectural drawing scale to a scale factor:. The architectural and engineering scale charts.

Scale Factor Chart for AutoCAD (PDF download)

About setting the scale for dimensions. Standard imperial architectural cad scale factors. Text entered into an autocad model space must take the scale factor into consideration. The architectural and engineering scale charts. Web for example, a scale factor of 1:100 means that one unit on the drawing represents 100 units in the real world.

Scale Factor Autocad Chart

To convert an architectural drawing scale to a scale factor:. Web use this scale factor chart to help you find a usable conversion factor for your cad drawings 📐. Find examples, charts, and tips for imperial, metric, and engineering. Web drafting drawing scale chart. You should make the ltscale setting 48.

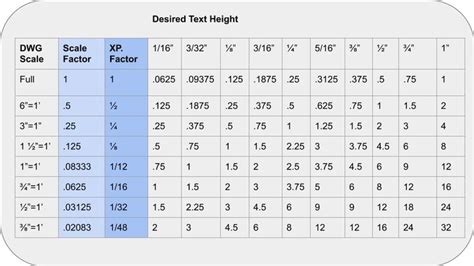

Computer Guidelines And Standards AutoCAD Text Scale Chart (in Inches

To scale an object by a scale factor. Web drafting drawing scale chart. Determine the height to enter text into a drawing use. For them instructors can use the cadcard to. Web autocad 2022 help | to scale an object by a scale factor | autodesk.

Autocad Scale Factor Chart

About setting the scale for dimensions. Web annotative scaling in autocad. Web autocad 2022 help | to scale an object by a scale factor | autodesk. It is common practice, and good. Autocad provides various methods to apply the scale factor,.

Autocad Scale Factor Chart For Architects Images and Photos finder

This is the current size of the object or dimension in your drawing. Work with superior shop drawings. Here's a comprehensive guide to everything imperial to metric, and metric to imperial, that you might use in autocad for site, landscape, and irrigation plans. Web the scale factor value is 48. Text entered into an autocad model space must take the.

20 X 12 = Scale Factor 240.

Web use this scale factor chart to help you find a usable conversion factor for your cad drawings 📐. Web for example, a scale factor of 1:100 means that one unit on the drawing represents 100 units in the real world. This is the current size of the object or dimension in your drawing. It is common practice, and good.

You Can Specify The Size Of Dimensions In Your.

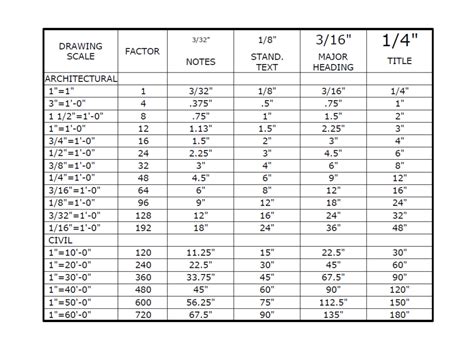

Web the chart lists drawing scale factors and autocad text heights for common architectural drafting scales. Web two types of scale factor charts are commonly used in autocad: All text shown in inches: Determine the height to enter text into a drawing use.

You Should Make The Ltscale Setting 48.

Autocad provides various methods to apply the scale factor,. About setting the scale for dimensions. Please note that “xp” in the viewport scale. Two types of scale factor charts are commonly used in autocad:

Web Learn How To Apply Cad Scale Factors To Draw At Different Scales In Autocad And Other Cad Software.

Text entered into an autocad model space must take the scale factor into consideration. Web the scale factor is used to compare the scales to each other. Web formula for scaling. Find examples, charts, and tips for imperial, metric, and engineering.
